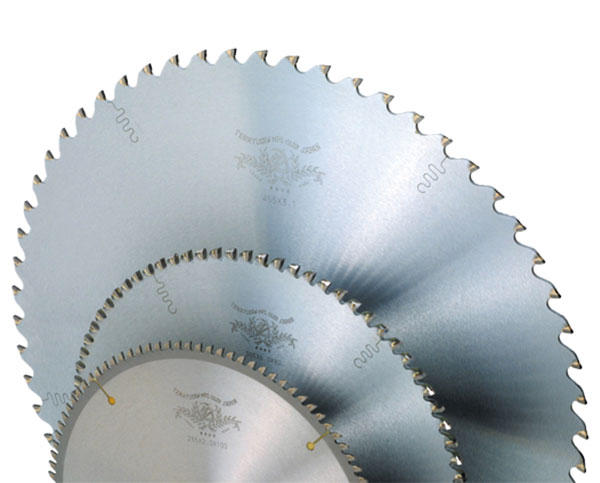

FOR HEAVY AND LIGHT-DUTY CUTTING | THROWAWAY TYPE

FOR HEAVY AND LIGHT-DUTY CUTTING | THROWAWAY TYPE

FEATURES Despite its thin kerf, this model boasts longevity, perpendicularity and smooth cut surface.
MATERIALS Bar steel, Stainless steel bar, Solid-drawn pipe
SHAPES OF MATERIALS Solid materials, Pipe, Other various shaped materials
BLADE DIMENSIONS Diameter:225 ~ 910
Kerf:2.0 ~ 4.0
Teeth:40 ~ 200
TOOTH GEOMETRY Notched tooth with breaker
TOOTH MATERIAL Carbide P30, Cermet, PVD coating TiN, AlTlN, CrN

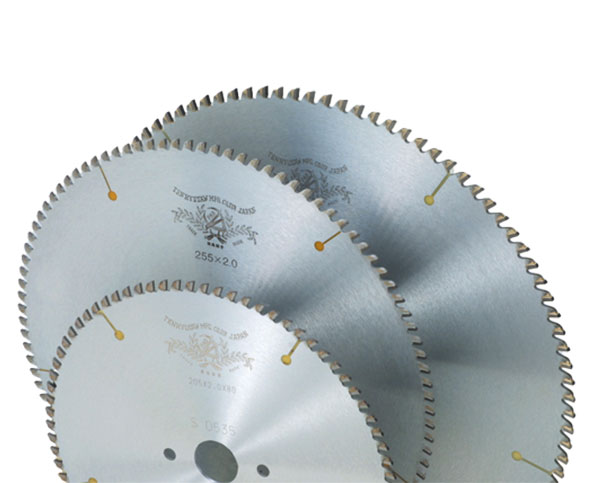

FOR LIGHT-DUTY CUTTING FOR AUTOMOBILES

FOR LIGHT-DUTY CUTTING FOR AUTOMOBILES

MATERIALS Door sash, Door molding, Exhaust pipe, etc.
SHAPES OF MATERIALS Roll formed material
BLADE DIMENSIONS Diameter:205 ~ 355
Kerf: 1.6 ~ 3.0
Teeth: 60 ~ 120
TOOTH GEOMETRY Triple Tip Grind, Flat, Chamfered Flat Tooth
TOOTH MATERIAL Carbide P30, Cermet
CUTTING PARAMETERS
Cutting speed [m/min] Feed rate per tooth (fz mm)
400 ~ 1,000 0.001 ~0.06

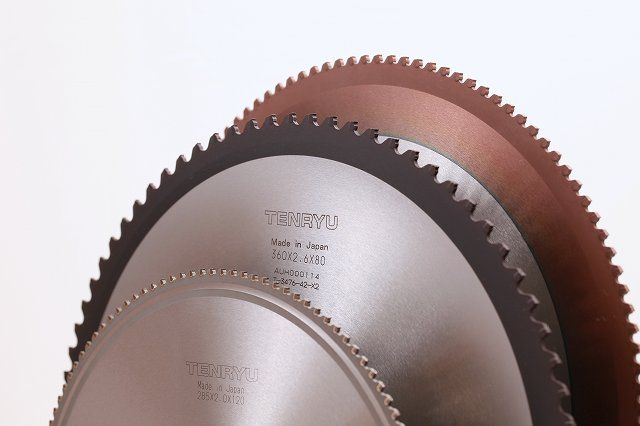

FOR NON-FERROUS

FOR NON-FERROUS

WORK MATERIAL CATEGORIES Aluminum, Copper, Brass, Other non-ferrous metals
WORK  MATERIALS Cake, Billet, Extrusion, Molding, Continuous casting
SHAPES OF MATERIALS Solid materials, Pipe, Other various shaped materials, Plate
BLADE DIMENSIONS Diameter:80 ~ 1,820
Kerf: 1.0 ~ 14.0
Teeth: 16 ~ 220
TOOTH GEOMETRY Triple Tip Grind, Flat, Chamfered Flat, Breaker Tooth
TOOTH MATERIAL Carbide K10 - K30
Option Considering high-speed-cutting LAQ type is available which is effective in reducing vibration
CUTTING PARAMETERS Cutting speed [m/min] Feed rate per tooth (fz mm)
2,000 ~ 4,000 0.001 ~0.01

Mobirise

Who is TENRYU

The company was founded over 100 years ago in 1913 and first activities go back to 1910. The first ever Circular Saw Blade produced in Japan was made by TENRYU.
